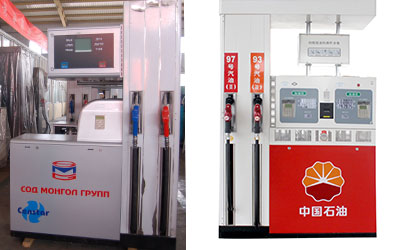

Marve Series Fuel Dispenser

Marve Series Fuel Dispenser

Censtar have Rich industry experience, tax control transformation, IC card transformation, large zero pipe transformation, oil and gas recovery transformation, cash collection system, on-line monitoring, leakage prevention transformation, gas station management system and other projects deployment and implementation experience.

the features of Marve Series Fuel Dispenser

HIGH SECURITY SECURED    WATERPROOF AND DUSTPROOF

6200 Main Board: Latest Electronic Technology, More Safety and Stability

Intelligent Voice Broadcast System, Printer Bill System, Full-service Customers

Adjustable Display: Brightness can be adjusted according to the light

Pos Smart Upgrade Simply Maintenance

High-precision Flow Meter: Shell use unique technical processing, moistureproof,rustproof, All the advanced design assure outstanding performance no malfunctionswithin 5,000,000 liters, life-cycle can reach 10,000,000 liters and wide temperatureadoption from-40C- 55C

Marve Series Fuel Dispenser Available Options

International Solenoid Valve

International Brand Nozzleo

Breakaway and Swivel

IC Card Payment Terminal

English Receipt Printer

Stainless Steel Arm Side and Canopy

Marve Series Fuel Dispenser Technical Parameters:

Accuracy:t0.25%

Flow Rate Range: 5-50L/Min or 8-80L/Min

Intake Vacuum:> 54KPA

Display: sales 0.00 to 9999999

Noise: < 80dB(A)

Volume: 0.00 to 99999.99

Unit Price: 0.00 to 9999 ( Decimal point position can be chosen)

Electrical Totalizer: 0.00 to 99999999.99

Electrical Mechanical Totalizer: 0.00 to 999999

Power Supply: AC380V or AC220V with a changing range from-15% to + 10%

Motor's Output Power: 750W and 1000W

Working Environmental Temperature: -40°C to+55°C

Relative Humidity: 30% to 90%

Marve Series Fuel Dispenser Congfiguration Table

	Pump Type	Nozzle	Oil Product	Display	Flow Rate (L/Min)
4P 2P	Gear Pump	4	2	2	5-50
6P 3P		6	3	2	5-50
8H 4P		8	4	2	5-50
4H 2P	Submersible Pump	4	2	2	5-50	8-80
6H 3P		6	3	2	5-50	8-80
8H 4P		8	4	2	5-50	8-80
