CS20 Series Fuel Dispenser

Quick inquiry
I am interested in . This equipment will be used in (country) . My name is , my Email is , my phone number is . Detailed requirements are . Please send me detailed quotation list!

mobile

CS20 Series Fuel Dispenser

Censtar is Fuel Dispenser Manufacturer and Fuel Dispensing Equipment in China ,mainly produces a series of products sush as Mobile Fuel Dispenser, Big Flow Rate Diesel Fuel Dispenser, China Fuel Dispenser Supplier

the features of CS20 Series Fuel Dispenser

HIGH SECURITY SECURED    WATERPROOF AND DUSTPROOF

6200 Main Board: Latest Electronic Technology, More Safety and Stability

Intelligent Voice Broadcast System, Printer Bill System, Full-service Customers

Adjustable Display: Brightness can be adjusted according to the light

Pos Smart Upgrade Simply Maintenance

High-precision Flow Meter: Shell use unique technical processing, moistureproof,rustproof, All the advanced design assure outstanding performance no malfunctionswithin 5,000,000 liters, life-cycle can reach 10,000,000 liters and wide temperatureadoption from-40C- 55C

CS20 Series Fuel Dispenser Available Options

International Solenoid Valve

International Brand Nozzleo

Breakaway and Swivel

IC Card Payment Terminal

English Receipt Printer

Stainless Steel Arm Side and Canopy

CS20 Series Fuel Dispenser Technical Parameters:

Accuracy:t0.25%

Flow Rate Range: 5-50L/Min or 8-80L/Min

Intake Vacuum:> 54KPA

Display: sales 0.00 to 9999999

Noise: < 80dB(A)

Volume: 0.00 to 99999.99

Unit Price: 0.00 to 9999 ( Decimal point position can be chosen)

Electrical Totalizer: 0.00 to 99999999.99

Electrical Mechanical Totalizer: 0.00 to 999999

Power Supply: AC380V or AC220V with a changing range from-15% to + 10%

Motor's Output Power: 750W and 1000W

Working Environmental Temperature: -40°C to+55°C

Relative Humidity: 30% to 90%

CS20 Series Fuel Dispenser Congfiguration Table


Pump Type

Nozzle

Oil Product

Display

Flow Rate (L/Min)

1H 1P

Submersible Pump

1

1

1

5-50

8-80


Net Size:476*426*550mm (L*W*H)

Package Size:540*480*650mm (L*W*H)

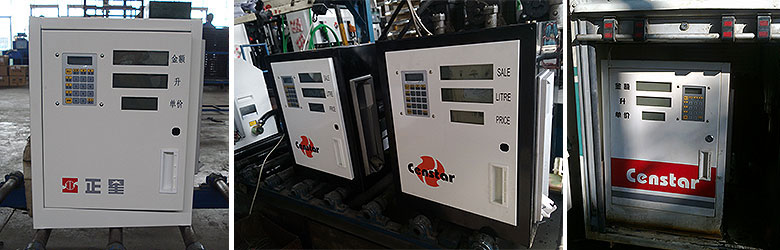

THE CASES

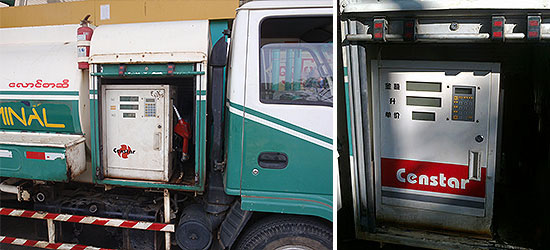

mobile case
